Office Network

1. Overview

Cytonn Ltd, with 600 devices, is preparing to move to a new building consisting of three floors. The building will house five departments and is equipped with:

2. Network Topology

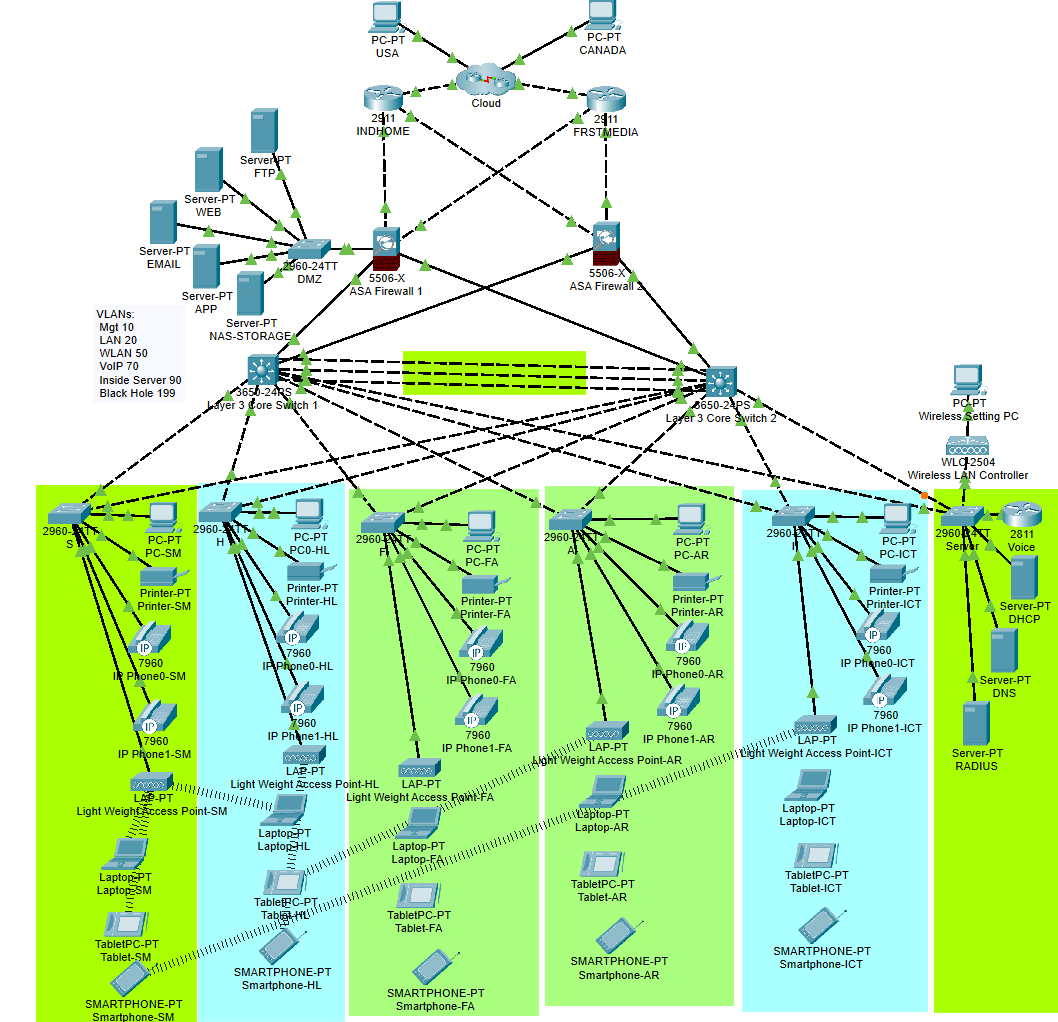

Figure 1: Network Topology Diagram
Description: The diagram illustrates the physical and logical layout of the network, including firewalls, switches, routers, WLC, LAPs, VLANs, and dual ISP connections. Key components are labeled for clarity.

    a. Core Infrastructure

    b. Security Architecture

    c. Advanced Features

3. Switch Configuration

diagram or screenshot of switch configurations, such as VLAN assignments, trunk ports, and EtherChannel setup.

    a. Basic Setting, SSH, and Standard ACL for SSH to All Switches

    All Switches

    enable
config t
no ip domain-lookup

line console 0
 password cisco
 login
 logging synchronous
 exec-timeout 3 0
exit

enable password cisco
banner motd #NO UNAUTHORIZED ACCESS!!#

service password-encryption

username cisco password cisco
ip domain-name cisco.com

crypto key generate rsa modulus 2048
ip ssh version 2

line vty 0 15
 login local
 transport input ssh
exit

access-list 1 permit 192.168.10.0 0.0.0.255

line vty 0 15
 access-class 1 in
exit

do wr

    b. VLAN assignment, access and trunk setting to All Switches

    Inter-Department Switches

    vlan 10
 name MGT
vlan 20
 name LAN
vlan 50
 name WLAN
vlan 70
 name VOIP
vlan 199
 name BLACKHOLE
exit

interface range fa0/1-2
 switchport mode trunk
exit

interface range fa0/3-4
 switchport mode access
 switchport access vlan 20
exit

interface range fa0/5-6
 switchport mode access
 switchport access vlan 70
exit

interface range fa0/7
 switchport mode access
 switchport access vlan 50
exit

interface range fa0/8-24, gig0/1-2
 switchport mode access
 switchport access vlan 199
exit

do wr

! Check VLAN Configuration
do sh vlan

    Data Center Switch

    vlan 10
 name MGT
vlan 20
 name LAN
vlan 50
 name WLAN
vlan 70
 name VOIP
vlan 90
 name INSIDE-SERVERS
exit

interface range fa0/1-2, fa0/7
 switchport mode trunk
exit

interface range fa0/3-5
 switchport mode access
 switchport access vlan 90
exit

interface fa0/6
 switchport mode access
 switchport access vlan 50
exit

do wr

! Check VLAN Configuration
do sh vlan

    Layer 3 Core Switches

    vlan 10
 name MGT
vlan 20
 name LAN
vlan 50
 name WLAN
vlan 70
 name VOIP
vlan 90
 name INSIDE-SERVER
exit

interface range gig1/0/3-8
 switchport mode trunk
exit

do wr

! Check VLAN Configuration
do sh vlan

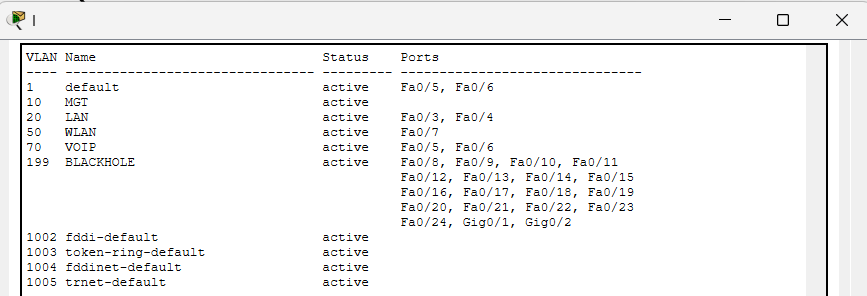

    Figure 2: VLAN Display on one of Cisco Switches
    Description: Screenshot showing the output of the do show vlan command from a Cisco 2960 switch, displaying the configured VLANs (VLANs 10, 20, and 30) and their corresponding names and statuses.

    c. STP Portfast and BPDU guard configuration on all access ports

    Inter-Department Switches

    interface range fa0/3-24
 spanning-tree portfast
 spanning-tree bpduguard enable
exit
do wr

    Data Center Switch

    interface range fa0/3-6, fa0/8-24
 spanning-tree portfast
 spanning-tree bpduguard enable
exit
do wr

    Demilitarized Zone (DMZ) Switch

    interface range fa0/1-24
 spanning-tree portfast
 spanning-tree bpduguard enable
exit
do wr

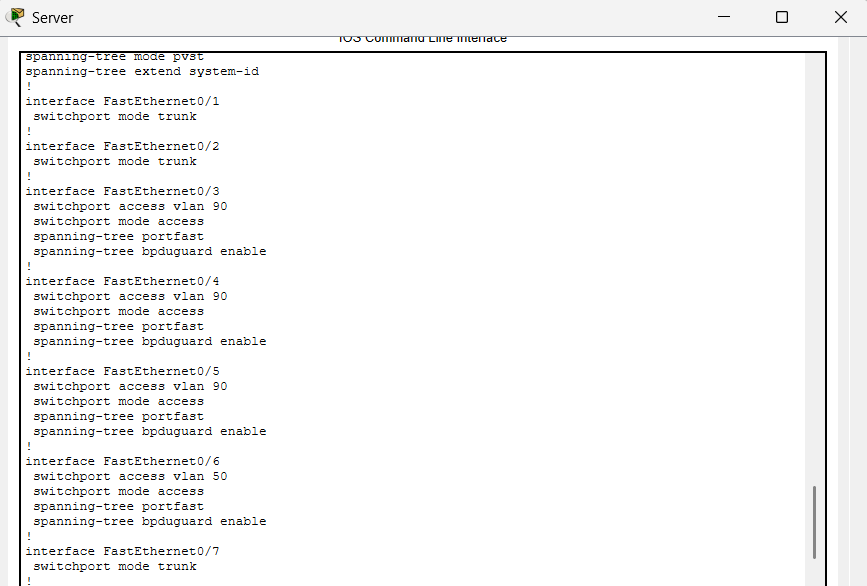

    Spanning Tree Configuration on Access Ports
    Figure 3: Spanning Tree Configuration on Access Ports
    Description: Screenshot showing the output of the show spanning-tree command. All access ports are configured with PortFast and BPDU Guard, ensuring faster convergence and protection against BPDU-related loops.

    d. EtherChannel (Load Balancer)

    Layer 3 Core Switch 1

    interface range gig1/0/9-11
 channel-group 1 mode active
exit
interface port-channel 1
 switchport mode trunk
exit
do wr

    Layer 3 Core Switch 2

    interface range gig1/0/9-11
 channel-group 1 mode passive
exit
interface port-channel 1
 switchport mode trunk
exit
do wr

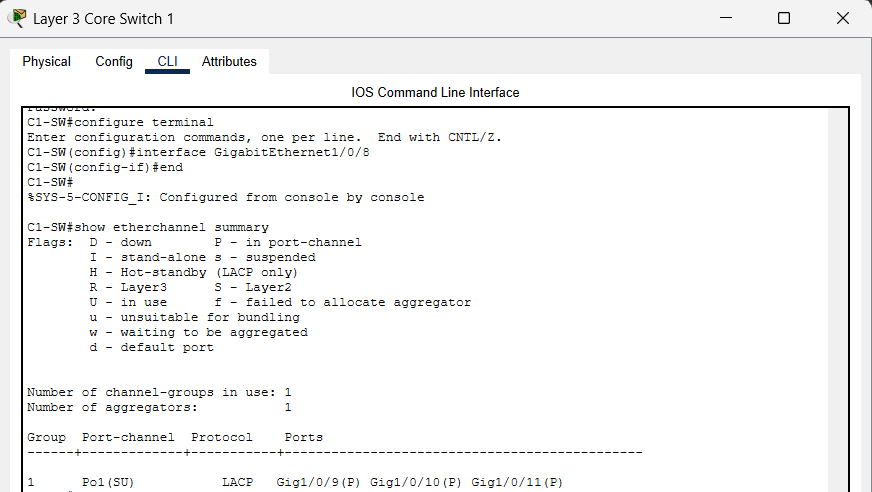

    EtherChannel Configuration Verification on Layer 3 Core Switch 1
    Figure 4: EtherChannel (Load Balancer) Configuration on Layer 3 Core Switch 1
    Description: Screenshot showing the output of the show etherchannel summary command. Ports gig1/0/9-11 are bundled into Port-Channel 1 in trunk mode using LACP (mode active), providing link aggregation and load balancing.

4. Subnetting and IP Addressing

Category VLAN Network & Subnet Mask Default Gateway
Management (MGT) 10 192.168.10.0/24 192.168.0.1
LAN 20 172.16.0.0/16 172.16.0.1
WLAN 50 10.20.0.0/16 10.20.0.1
Voice IP (VoIP) 70 172.30.0.0/16 172.30.0.1
DMZ - 10.11.11.0/27 10.11.11.1
Inside Servers 90 10.11.11.32/27 10.11.11.33

Layer 3 Core Switch 1

ip routing
interface gig1/0/1
 no switchport
 no shutdown
 ip address 10.2.2.1 255.255.255.252
 exit
interface gig1/0/2
 no switchport
 no shutdown
 ip address 10.2.2.5 255.255.255.252
 exit
do wr

Layer 3 Core Switch 2

ip routing
interface gig1/0/1
 no switchport
 no shutdown
 ip address 10.2.2.9 255.255.255.252
 exit
interface gig1/0/2
 no switchport
 no shutdown
 ip address 10.2.2.13 255.255.255.252
 exit
do wr

ISP 1 (Indhome)

interface gig0/0
 ip address 105.100.50.1 255.255.255.252
 no shutdown
 exit
interface gig0/1
 ip address 105.100.50.5 255.255.255.252
 no shutdown
 exit
interface gig0/2
 ip address 20.20.20.1 255.255.255.252
 no shutdown
 exit
do wr

ISP 2 (Frstmedia)

interface gig0/0
 ip address 197.200.100.1 255.255.255.252
 no shutdown
 exit
interface gig0/1
 ip address 197.200.100.5 255.255.255.252
 no shutdown
 exit
interface gig0/2
 ip address 30.30.30.1 255.255.255.252
 no shutdown
 exit
do wr

Cloud

interface gig0/0
 ip address 20.20.20.2 255.255.255.252
 no shutdown
 exit
interface gig0/1
 ip address 30.30.30.2 255.255.255.252
 no shutdown
 exit
interface gig0/2
 ip address 8.0.0.1 255.0.0.0
 no shutdown
 exit
do wr

5. HSRP, Inter-VLAN Routing, and IP DHCP Helper Address

diagram or screenshot showing HSRP configuration and inter-VLAN routing setup.

Layer 3 Core Switch 1

interface Vlan10
 ip address 192.168.10.3 255.255.255.0
 ip helper-address 10.11.11.38
 standby 10 ip 192.168.10.1
 standby 10 preempt

interface Vlan20
 ip address 172.16.0.3 255.255.0.0
 ip helper-address 10.11.11.38
 standby 20 ip 172.16.0.1
 standby 20 preempt

interface Vlan50
 ip address 10.20.0.2 255.255.0.0
 ip helper-address 10.11.11.38
 standby 50 ip 10.20.0.1
 standby 50 preempt

interface Vlan90
 ip address 10.11.11.34 255.255.255.224
 standby 90 ip 10.11.11.33
 standby 90 preempt

Layer 3 Core Switch 2

interface Vlan10
 ip address 192.168.10.2 255.255.255.0
 ip helper-address 10.11.11.38
 standby 10 ip 192.168.10.1
 standby 10 preempt

interface Vlan20
 ip address 172.16.0.2 255.255.0.0
 ip helper-address 10.11.11.38
 standby 20 ip 172.16.0.1
 standby 20 preempt

interface Vlan50
 ip address 10.20.0.3 255.255.0.0
 ip helper-address 10.11.11.38
 standby 50 ip 10.20.0.1
 standby 50 preempt

interface Vlan90
 ip address 10.11.11.35 255.255.255.224
 standby 90 ip 10.11.11.33
 standby 90 preempt

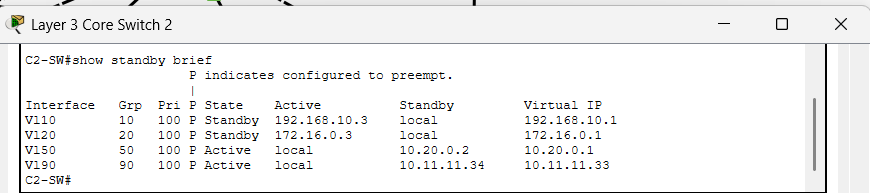

HSRP Status on Layer 3 Core Switch 2
Figure 5: HSRP Status on Layer 3 Core Switch 2
Description: Screenshot showing the output of the show standby brief command. It displays HSRP status, indicating which VLAN interfaces are in the Active and Standby roles for redundancy and gateway failover.

6. Static IP Address to DMZ and Server Group

table or diagram showing static IP assignments for DMZ and server groups.

Devices/Services IPv4 Address Subnet Mask Default Gateway DNS Server
DHCP 10.11.38 255.255.255.224 10.11.11.33 10.11.11.37
DNS 10.11.11.37 255.255.255.224 10.11.11.33 10.11.11.37
RADIUS 10.11.11.36 255.255.255.224 10.11.11.33 10.11.11.37
FTP 10.11.11.10 255.255.255.224 10.11.11.1 10.11.11.37
WEB 10.11.11.11 255.255.255.224 10.11.11.1 10.11.11.37
EMAIL 10.11.11.12 255.255.255.224 10.11.11.1 10.11.11.37
APP 10.11.11.13 255.255.255.224 10.11.11.1 10.11.11.37
NAS-STORAGE 10.11.11.14 255.255.255.224 10.11.11.1 10.11.11.37
USA PC 8.0.0.10 255.0.0.0 8.0.0.1 8.0.0.1
Canada PC 8.0.0.20 255.0.0.0 8.0.0.1 8.0.0.1

7. DHCP Server Device Configuration

screenshot or configuration snippet of the DHCP server setup

Pool Name Start IPv4 Address Subnet Mask Default Gateway DNS Server Max Number of Users WLC Address
serverPool 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0 0 N/A
MGT-Pool 192.168.10.11 255.255.255.0 192.168.10.1 10.11.11.37 200 N/A
LAN-Pool 172.16.0.11 255.255.0.0 172.16.0.1 10.11.11.37 1000 N/A
WLAN-Pool 10.20.0.11 255.255.0.0 10.20.0.1 10.11.11.37 1000 10.20.0.10

8. OSPF on Routers and Core Switches

diagram or screenshot showing OSPF configuration on routers and core switches.

Layer 3 Core Switch 1

router ospf 35
 router-id 1.1.1.1
 network 10.2.2.0 0.0.0.3 area 0
 network 10.2.2.4 0.0.0.3 area 0
 network 192.168.10.0 0.0.0.255 area 0
 network 172.16.0.0 0.0.255.255 area 0
 network 10.20.0.0 0.0.255.255 area 0
 network 10.11.11.32 0.0.0.31 area 0
 exit
do write

show ip ospf neighbor
show ip route ospf

Layer 3 Core Switch 2

router ospf 35
 router-id 1.1.2.2
 network 10.2.2.8 0.0.0.3 area 0
 network 10.2.2.12 0.0.0.3 area 0
 network 192.168.10.0 0.0.0.255 area 0
 network 172.16.0.0 0.0.255.255 area 0
 network 10.20.0.0 0.0.255.255 area 0
 network 10.11.11.32 0.0.0.31 area 0
 exit
do write

show ip ospf neighbor
show ip route ospf

ISP 1 (Indhome)

router ospf 35
 router-id 1.1.3.3
 network 105.100.50.0 0.0.0.3 area 0
 network 105.100.50.4 0.0.0.3 area 0
 network 20.20.20.0 0.0.0.3 area 0
 exit
do write

show ip ospf neighbor
show ip route ospf

ISP 2 (Frstmedia)

router ospf 35
 router-id 1.1.4.4
 network 30.30.30.0 0.0.0.3 area 0
 network 197.200.100.0 0.0.0.3 area 0
 network 192.200.100.4 0.0.0.3 area 0
 exit
do write

show ip ospf neighbor
show ip route ospf

Cloud

router ospf 35
 router-id 1.1.5.5
 network 8.0.0.0 0.255.255.255 area 0
 network 20.20.20.0 0.0.0.3 area 0
 network 30.30.30.0 0.0.0.3 area 0
 exit
do write

show ip ospf neighbor
show ip route ospf

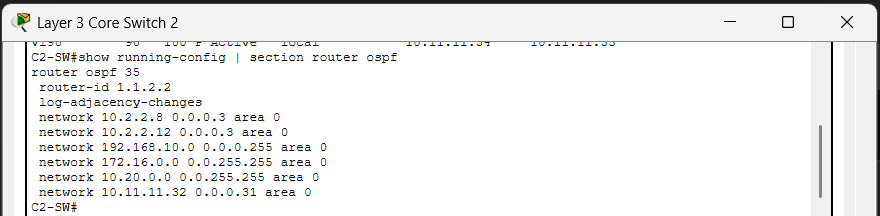

OSPF Configuration on Layer 3 Core Switch 2
Figure 6: OSPF Configuration on Layer 3 Core Switch 2
Description: Screenshot showing the output of the show running-config | section router ospf command on Layer 3 Core Switch 2. It displays OSPF process 35 configuration, including the router ID and network statements.

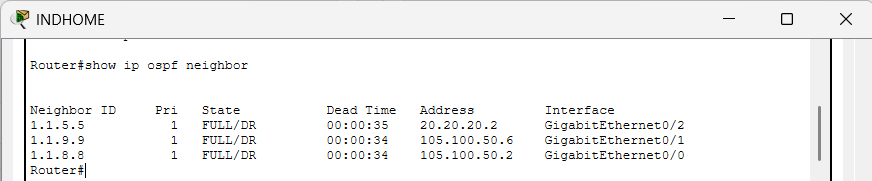

OSPF Neighbor Relationships on ISP IND
Figure 7: OSPF Neighbor Relationships from ISP INDHOME
Description: Screenshot showing the output of the show ip ospf neighbor command on ISP IND, displaying OSPF neighbor adjacency status and neighbor IDs.

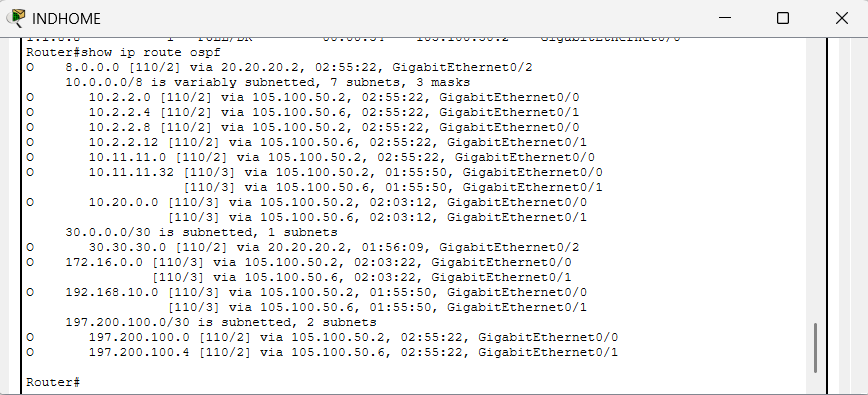

OSPF Routing Table on ISP IND
Figure 8: OSPF Routing Table from ISP INDHOME
Description: Screenshot showing the output of the show ip ospf route command on ISP IND. It lists OSPF routes learned from different areas, indicating the next hops and route types.

9. Firewalls Setting

screenshots or diagrams of firewall configurations, such as security zones, OSPF routes, and inspection policies.

    a. Interface Security Zones and Levels

    ASA Firewall 1

    interface gig1/3
 no shutdown
 ip address 10.2.2.2 255.255.255.252
 nameif INSIDE1
 security-level 100
exit

interface gig1/4
 no shutdown
 ip address 10.2.2.10 255.255.255.252
 nameif INSIDE2
 security-level 100
exit

interface gig1/5
 no shutdown
 ip address 10.11.11.1 255.255.255.224
 nameif DMZ
 security-level 70
exit

interface gig1/1
 no shutdown
 ip address 105.100.50.2 255.255.255.252
 nameif OUTSIDE1
 security-level 0
exit

interface gig1/2
 no shutdown
 ip address 197.200.100.2 255.255.255.252
 nameif OUTSIDE2
 security-level 0
exit

do wr
wr mem

    ASA Firewall 2

    interface gig1/3
 no shutdown
 ip address 10.2.2.6 255.255.255.252
 nameif INSIDE1
 security-level 100
exit

interface gig1/4
 no shutdown
 ip address 10.2.2.14 255.255.255.252
 nameif INSIDE2
 security-level 100
exit

interface gig1/1
 no shutdown
 ip address 105.100.50.6 255.255.255.252
 nameif OUTSIDE1
 security-level 0
exit

interface gig1/2
 no shutdown
 ip address 197.200.100.6 255.255.255.252
 nameif OUTSIDE2
 security-level 0
exit

do wr
wr mem

    b. OSPF and Static Routes

    ASA Firewall 1

    route OUTSIDE1 0.0.0.0 0.0.0.0 105.100.50.1
route OUTSIDE2 0.0.0.0 0.0.0.0 197.200.100.1 70

router ospf 35
 router-id 1.1.8.8
 network 105.100.50.0 255.255.255.252 area 0
 network 197.200.100.0 255.255.255.252 area 0
 network 10.11.11.0 255.255.255.224 area 0
 network 10.2.2.0 255.255.255.252 area 0
 network 10.2.2.8 255.255.255.252 area 0
exit

wr mem

    ASA Firewall 2

    route OUTSIDE2 0.0.0.0 0.0.0.0 197.200.100.5
route OUTSIDE1 0.0.0.0 0.0.0.0 105.100.50.5

router ospf 35
 router-id 1.1.9.9
 network 197.200.100.4 255.255.255.252 area 0
 network 105.100.50.4 255.255.255.252 area 0
 network 10.2.2.4 255.255.255.252 area 0
 network 10.2.2.12 255.255.255.252 area 0
exit

wr mem

    c. Inspection Policy Configuration

    ASA Firewall 1

    object network DMZ-OUTSIDE1
 subnet 10.11.11.0 255.255.255.224
 nat (DMZ, OUTSIDE1) dynamic interface

object network DMZ-OUTSIDE2
 subnet 10.11.11.0 255.255.255.224
 nat (DMZ, OUTSIDE2) dynamic interface

object network INSIDE1-OUTSIDE1
 subnet 172.16.0.0 255.255.0.0
 nat (INSIDE1, OUTSIDE1) dynamic interface

object network INSIDE1-OUTSIDE2
 subnet 172.16.0.0 255.255.0.0
 nat (INSIDE1, OUTSIDE2) dynamic interface

object network INSIDE2-OUTSIDE1
 subnet 172.16.0.0 255.255.0.0
 nat (INSIDE2, OUTSIDE1) dynamic interface

object network INSIDE2-OUTSIDE2
 subnet 172.16.0.0 255.255.0.0
 nat (INSIDE2, OUTSIDE2) dynamic interface

wr mem

    ASA Firewall 2

    object network INSIDE1-OUTSIDE1
 subnet 172.16.0.0 255.255.0.0
 nat (INSIDE1, OUTSIDE1) dynamic interface

object network INSIDE1-OUTSIDE2
 subnet 172.16.0.0 255.255.0.0
 nat (INSIDE1, OUTSIDE2) dynamic interface

object network INSIDE2-OUTSIDE1
 subnet 172.16.0.0 255.255.0.0
 nat (INSIDE2, OUTSIDE1) dynamic interface

object network INSIDE2-OUTSIDE2
 subnet 172.16.0.0 255.255.0.0
 nat (INSIDE2, OUTSIDE2) dynamic interface

wr mem

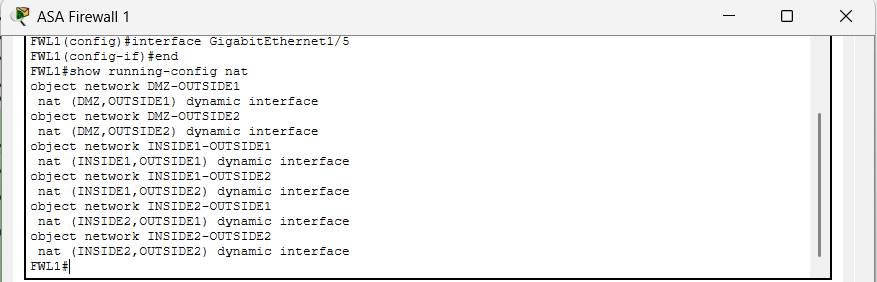

    NAT and Inspection Policy Configuration on ASA Firewall 1
    Figure 9: NAT and Inspection Policy Configuration on ASA Firewall 1
    Description: Screenshot showing the output of the show running-config nat command on ASA Firewall 1. It displays NAT rules and inspection policies applied for traffic passing through different interfaces, including DMZ, INSIDE, and OUTSIDE zones.

    d. Network Configuration

    ASA Firewall 1

    access-list RES extended permit icmp any any
access-list RES extended permit tcp any any eq 80
access-list RES extended permit tcp any any eq 53
access-list RES extended permit udp any any eq 53
access-group RES in interface DMZ
access-group RES in interface OUTSIDE1
access-group RES in interface OUTSIDE2
wr mem

    ASA Firewall 2

    access-list RES extended permit icmp any any
access-list RES extended permit tcp any any eq 80
access-list RES extended permit tcp any any eq 53
access-list RES extended permit udp any any eq 53
access-group RES in interface OUTSIDE1
access-group RES in interface OUTSIDE2
wr mem

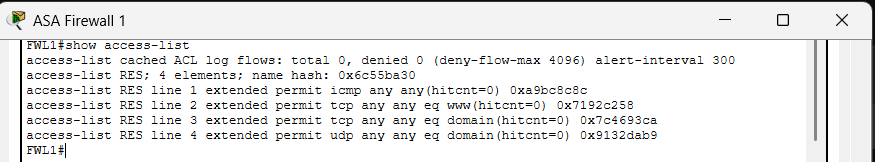

    ACL Configuration on ASA Firewall 1
    Figure 10: Access Control List (ACL) Configuration on ASA Firewall 1
    Description: Screenshot showing the output of the show access-list command on ASA Firewall 1. It displays the access control entries (ACEs) in the RES access list, allowing ICMP, HTTP (port 80), and DNS traffic (TCP/UDP port 53) on interfaces DMZ, OUTSIDE1, and OUTSIDE2.

10. Port Security Configuration

For enhanced network security, port security has been implemented on all access switches.

Access Layer Switches Configuration

interface range fa0/3-24
 switchport port-security
 switchport port-security maximum 2
 switchport port-security mac-address sticky
 switchport port-security violation restrict
 switchport port-security aging time 60
 exit
do wr

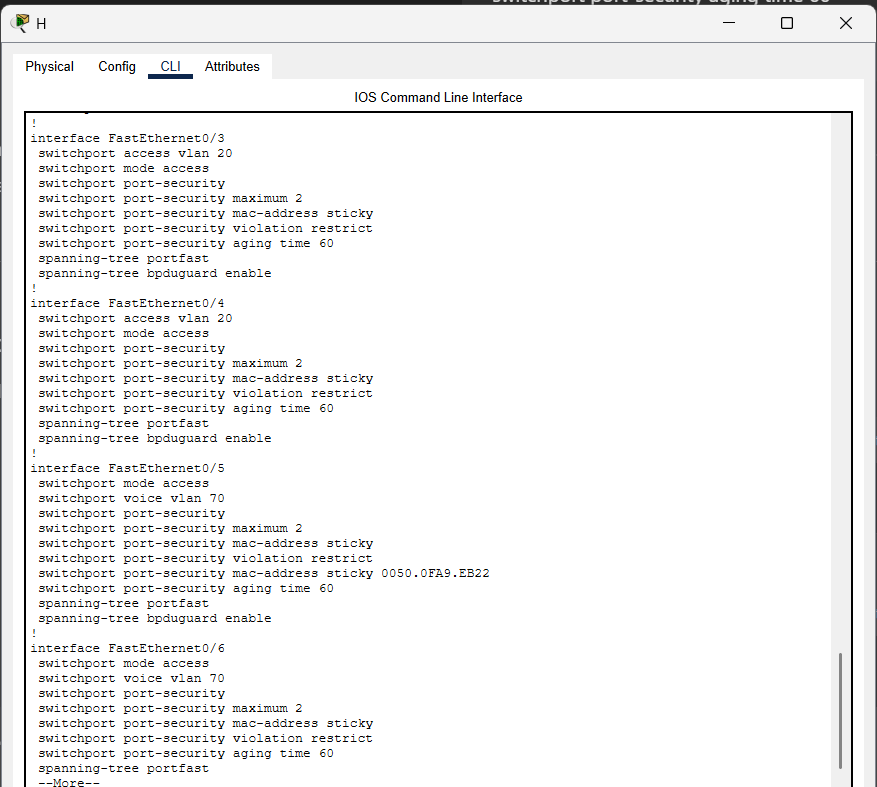

Port Security Configuration on Cisco Switch
Figure 11: Switchport Port Security Configuration
Description: Screenshot showing the output of the show running-config command, displaying switchport port-security settings. The configuration includes a maximum of 2 MAC addresses per port, sticky MAC address learning, violation mode set to restrict, and an aging time of 60 minutes.

11. AAA and RADIUS Configuration

Authentication, Authorization, and Accounting (AAA) with RADIUS server integration for centralized access control.

Layer 3 Core Switches

aaa new-model
aaa authentication login default group radius local
aaa authorization exec default group radius local
aaa accounting exec default start-stop group radius

radius server RAD-SRV
 address ipv4 10.11.11.36 auth-port 1812 acct-port 1813
 key Str0ngR@diusK3y
exit

do wr

ASA Firewalls

aaa-server RADIUS protocol radius
aaa-server RADIUS (INSIDE) host 10.11.11.36
 key Str0ngR@diusK3y
exit

aaa authentication http console RADIUS LOCAL
aaa authentication ssh console RADIUS LOCAL
aaa authentication enable console RADIUS LOCAL

do wr

12. Network Monitoring and Management

Centralized monitoring setup using SNMP for network visibility and proactive management.

Layer 3 Core Switches

snmp-server community C1sc0C1sc0 RO
snmp-server location Building-A-Floor-1
snmp-server contact admin@cytonn.com
snmp-server enable traps
snmp-server host 10.11.11.38 version 2c C1sc0C1sc0

logging host 10.11.11.38
logging trap notifications
logging source-interface Vlan10

do wr

13. WLAN Configuration

diagram or screenshot of the WLAN configuration, including SSIDs, VLANs, and access point placements.

Category IPv4 Address Subnet Mask Default Gateway DNS Server Additional Info
WLC Management 10.20.0.10 255.255.0.0 10.20.0.1 10.11.11.37 URL: https://10.20.0.10
Username: admin
Password: C1sc0C1sc0
Wireless Setting PC 10.20.0.100 255.255.0.0 10.20.0.1 10.11.11.37 -
LAPs DHCP DHCP 10.20.0.1 10.11.11.37 Recommended IP range:
10.20.0.50-10.20.0.99
Important Notes:

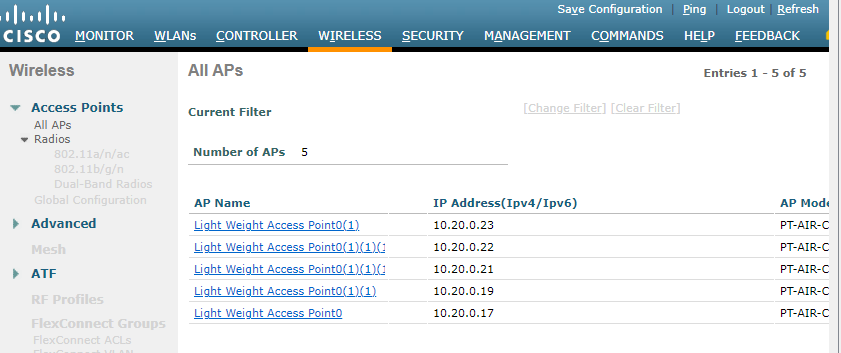

LAN Connection and LAP Activation on WLC
Figure 12: LAN Connection and 5 LAPs Activation on WLC
Description: Screenshot showing the LAN connection setup and LAP activation from the WLC. The LAPs are registered and ready for wireless configuration.

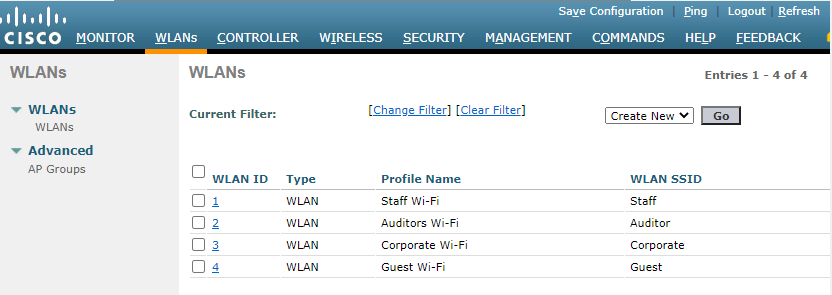

Wireless Group Configuration with 5 LAPs
Figure 13: Wireless Group Configuration with 4 Wi-Fi Group
Description: Screenshot showing the WLC configuration for four wireless groups, each managed by five Lightweight Access Points (LAPs) for optimized Wi-Fi coverage and performance.
